Digitus Industrial Network Cabinet, Indoor, IP55
Shipping costs
Lieferzeit: Sofern im Artikel nicht anders angegeben, erfolgt die Lieferung innerhalb von 1–3 Werktagen nach Zahlungseingang.
Lieferungen sind aktuell nur innerhalb Deutschlands möglich. Für Auslandsschiffahrten wende dich bitte an unseren Support.
Accessories 23
Highlights
-
483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
-
Side panels with special fixing via countersunk bolt
-
Profile hole structure rotary inside
-
Roof with screwed visual cover panel for lifting eye bolts
-
130° door opening angle
-
1.5 - 2.0 mm strong steel sheet
-
Door structure is produced with multiple bending to obtain rigidity and strength
-
Special gasketing system between metal frame and profile system made out of PUR (Polyurethane)
-

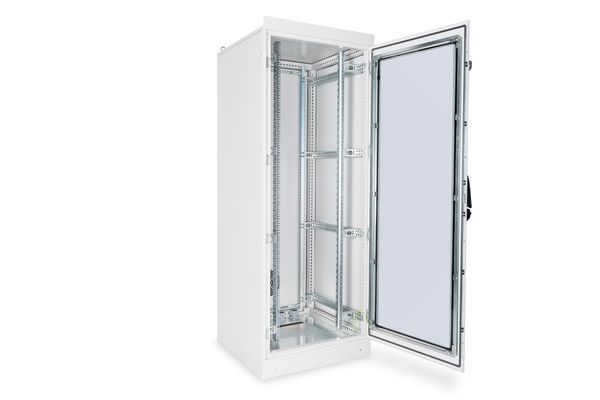

Front door with complete metal frame and 4 mm strong tempered glass
-

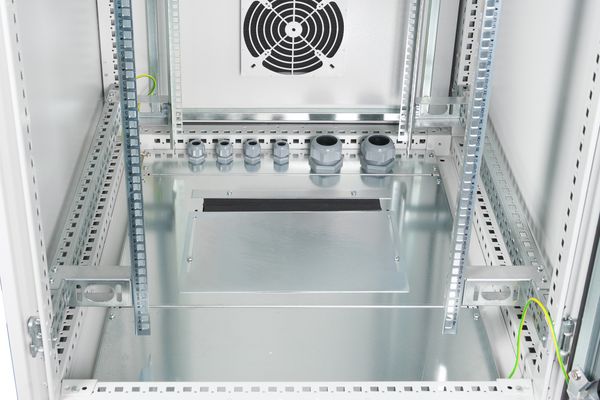

Base chassis is equipped with sliding cable entry mechanism & PG cable entries (1x PG 48, 4x PG 21)
-
Profiles produced with DIN EN10142-2000 DX51 D+Z material provide high resistance against corrosion
-

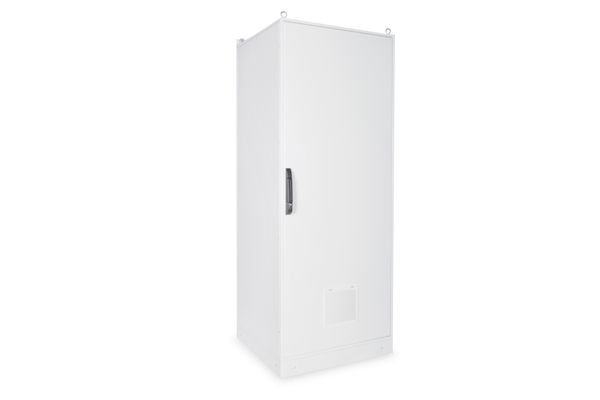

Closed steel rear door with filtered air inlet (250x250 mm)
-
Corner parts made out of E-160 material with aluminum injection molding, high resistance against corrosion
-
Equipment mounting depth min.-max.: 160-660 mm
-
483 mm (19“) profile rails are adjustable in depth and with height unit marking
Description
- IK10 mechanical impact resistance acc. to IEC EN62262
- 4 point locking system on front- & rear door
- incl. already mounted plinth
The free-standing industrial network cabinets are specially adapted according to protection type IP55 for the requirements of harsh environments. The floor structure can be opened in a modular design thanks to its galvanized, bolted panels. In addition, it is equipped with a sliding cable inlet with foam rubber seal as well as PG cable glands. A plinth mounted under the cabinet (100 mm) provides extra storage room for excess cable lengths. Two pairs of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth is adjustable and they are connected to additional depth bars in the cabinet. Each cabinet is made of up to 2.0 mm thick sheet steel. A wraparound profile perforation supports a wide range of installation options in the cabinet. Coloring is done with electrostatic powder coating in the standard color gray (RAL 7035). The adhesion capacity according to EN ISO 2409: Class 0 to 1 as well as the 500-hour test carried out for resistance against salt spray, demonstrates a permissible operating temperature from - 25 °C up to + 70 °C. The removable side walls, fastened with countersunk screws, as well as doors including swing handle with profile half-cylinder, improve the security of access.
Specifications
About this item
About this item
- Item No.
- 364560
- EAN
- 4016032371496
- Manufacturer No.
- DN-19 42U-I-8/8-1
Specs
Features
- Product colour
- Light grey
- Front door construction
- Glass
- International Protection (IP) code
- IP55
- Cooling type
- Passive
- Product design
- 4-post
- Side panels included
- Yes
- Rack capacity
- 42U
- Castor wheels
- No
- Cable management
- Yes
- Maximum weight capacity
- 1500 kg
- Material
- Steel, Tempered glass
- Type
- Freestanding rack
- Frame type
- Closed
- Key lock
- Yes
- Adjustable mounting rails
- Yes
- Front door key lock
- Yes
- Back door key lock
- Yes
Operational conditions
- Operating temperature (T-T)
- -25 - 70 °C
Weight & dimensions
- Height
- 2100 mm
- Width
- 800 mm
- Depth
- 800 mm
- Size (imperial)
- 48.3 cm (19")
Packaging data
- Package weight
- 166 kg
- Package width
- 815 mm
- Package height
- 2300 mm
- Package depth
- 815 mm
- Package volume
- 1527720 cm³
Logistics data
- Country of origin
- Turkey
- Harmonized System (HS) code
- 85381000
- UK Trade Tariff code
- 94032080
