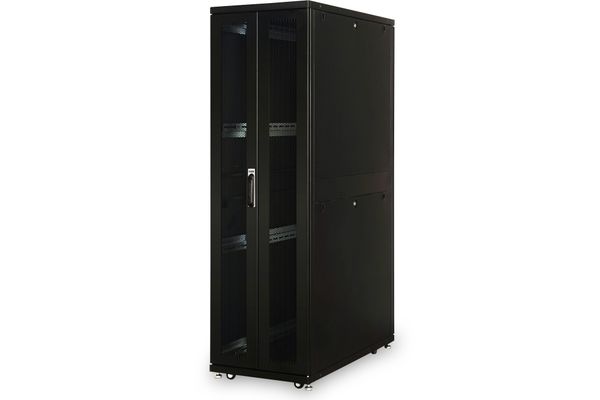

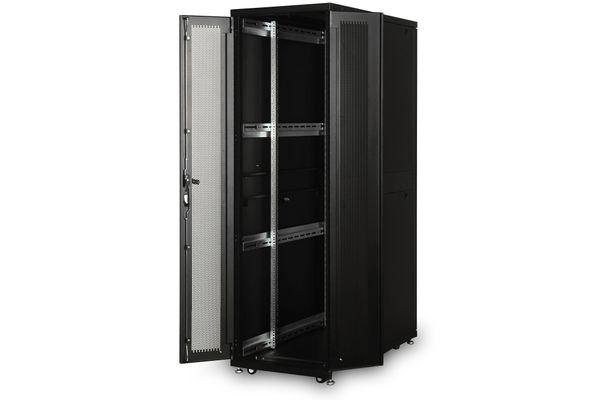

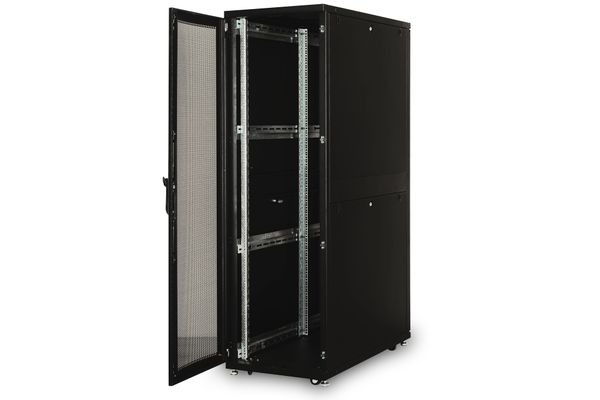

Digitus Server Rack Unique Series - 600x1000 mm (WxD)
Shipping costs
Lieferzeit: Sofern im Artikel nicht anders angegeben, erfolgt die Lieferung innerhalb von 1–3 Werktagen nach Zahlungseingang.
Lieferungen sind aktuell nur innerhalb Deutschlands möglich. Für Auslandsschiffahrten wende dich bitte an unseren Support.
Accessories 34
Highlights
-
Special roof construction for fan unit, incl. perforated cover
-
Front door with 4-point locking and rear door with 3-point locking
-
1.5 mm strong steel sheet
-
High frame rigidity due to special plate-curving-technique
-
Equipment mounting depth min.-max.: 675-875 mm
-
230° door opening angle on front- and rear doors
-
Safety class rating IP20
-
Built-in depth support bars for more stability
-
Sliding cable entry with rubber sealing on the top and base
-
Double wing opening rear door
-
483 mm (19“) profile rails are adjustable in depth and with height unit marking
-
Several earthing points for rack components
-
Lock system with pivot lever on front- and rear door (incl. profile half cylinder lock)
-
483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
-
Front- and rear doors made out of 70% perforated steel
-
Horizontally separated side panels (two per side), lockable and detachable
-
Rack is completely mounted
-
incl. 4 pieces of leveling feet and 4 pieces of castor, already pre-configured under the cabinet (front castor are lockable)
Description
- Special roof construction for fan unit, incl. perforated cover
- Lockable pivot lever on front- and rear door
- Sliding cable entry with rubber sealing on the top and base
The Server Racks of the Unique Series were designed for the user friendly installation of active- and passive network components accompanied by a neat cable management. Each rack consists of up to 1.5 mm strong steel sheet material which ensures a very good stability as a robust steel construction due to special plate curving technique. The color is created by powder coating in grey (RAL 7035) and black (RAL 9005). All doors can be easily detached and the door stop can be changed from right to left. The roof is present with an added perforated cover for a better air circulation Furthermore the roof is ready for the mounting of an air ventilation unit. Each server rack contains 2 pairs (4 pieces) of 483 mm (19”) profile rails inside which are galvanized and with height unit marking (countable from both directions). They are variable in depth and connected with additional depth support bars to realize extensive 483 mm (19”) equipment installations. With a load capacity of up to 1000 kg they can cope perfectly with server applications. The side panels are horizontally divided which ensures best accessibility to the mounted equipment. An important aspect for each installation is the cable management. The top and base of each rack is equipped with a sliding cable entry panel with rubber sealing. For cabinets with 800 mm width, the possibilities of cable management get enhanced with additional cable entries with brushes left and right in the top and base chassis. An extensive portfolio of accessories for cable management, shelves, etc. will help to meet many requirements in daily use.
Specifications
About this item
About this item
- Item No.
- 364511
- EAN
- 4016032372530
- Manufacturer No.
- DN-19 SRV-47U-B-1
Specs
Features
- Back door construction
- Steel/Perforated
- Front door construction
- Steel
- International Protection (IP) code
- IP20
- Side panels included
- Yes
- Rack capacity
- 47U
- Type
- Freestanding rack
- Material
- Steel
- Product colour
- Black
- Maximum weight capacity
- 1000 kg
Weight & dimensions
- Mounting depth (max)
- 87.5 cm
- Width
- 600 mm
- Depth
- 1000 mm
- Size (imperial)
- 48.3 cm (19")
- Height
- 2192 mm
- Mounting depth (min)
- 67.5 cm
Packaging data
- Package weight
- 128 kg
- Package width
- 650 mm
- Package depth
- 1050 mm
- Package volume
- 1530160 cm³
Logistics data
- Country of origin
- Turkey
- Harmonized System (HS) code
- 85381000
- UK Trade Tariff code
- 94032080
