Digitus Wall Mounting Cabinet Unique Series - double sectioned, pivoted
Shipping costs
Lieferzeit: Sofern im Artikel nicht anders angegeben, erfolgt die Lieferung innerhalb von 1–3 Werktagen nach Zahlungseingang.
Lieferungen sind aktuell nur innerhalb Deutschlands möglich. Für Auslandsschiffahrten wende dich bitte an unseren Support.
Accessories 25
Highlights
-
Roof is prepared for fan units (punched out entries)
-
Side panels are lockable and removable
-
102° pivotable angle of the housing from the frame
-

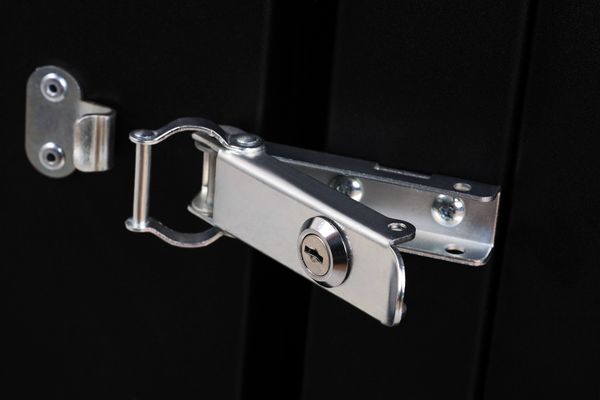

Housing is connected to rear frame with separate locking mechanism (incl. individual key)
-
Rear frame with brush strip for cable entry on top and base
-
483 mm (19“) profile rails are adjustable in depth and with height unit marking
-
Ventilation slots for active and passive ventilation and exhausting
-
1-point-locking-mechanism on the front door
-
Lockable safety-glass door with steel frame
-
Safety class rating IP20
-
483 mm (19“) profile rails mounted on the front side inside of the cabinet, galvanized
-
Rack is completely mounted
-
Several earthing points for rack components
-
210° door opening angle
-
Incl. installation set (screws, cage nuts, washers)
-
Equipment mounting depth min.-max.: 375-440 mm
-
Cable entry on the rear side and base with plastic cover and top with sliding cover
-
Rear frame with 483 mm (19”) punch outs
-
Max. installation depth: 440 mm
Description
- Robust steel construction for sturdy wall mounting
- Lockable safety-glass door with steel frame
- Side panels are lockable and removable
The network cabinets for wall installation from the Unique series were developed for especially convenient and flexible network cabling. Thanks to the integrated hinge in the back frame, the housing can be folded to the side if needed, for example in order to easily carry out assembly work in the back area of the cabinet. There is a sliding cable inlet with foam rubber seal in the roof of each cabinet. The back wall and floor plate are equipped with pre-cut cable inlets with a plastic cover. In addition, the back frame is equipped with brush management panels on the top and bottom. To accommodate a fan module, the roof structure is also equipped with a pre-cut area. One pair of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth can be adjusted. The back frame also has a 483 mm (19”) perforation. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Removable and lockable side walls in a modular design as well as lockable and removable front door improve accessibility. The door hinges can be switched. Wall installation is accomplished in two easy work steps: The housing frame plate is bolted on the wall to open in either direction and then connected with the housing. With optionally available levelling feet or casters, the wall housings from the Unique series can also be used as a free-standing unit.
Specifications
About this item
About this item
- Item No.
- 364548
- EAN
- 4016032257769
- Manufacturer No.
- DN-19 12-U-3-SW
Specs
Features
- Front door key lock
- Yes
- Front door construction
- Glass
- International Protection (IP) code
- IP20
- Removable side panels
- Yes
- Frame type
- Closed
- Type
- Wall mounted rack
- Material
- Steel
- Product colour
- Black
- Maximum weight capacity
- 100 kg
- Rack capacity
- 12U
- Side panels included
- Yes
Weight & dimensions
- Size (imperial)
- 48.3 cm (19")
- Width
- 600 mm
- Depth
- 600 mm
- Height
- 643 mm
Packaging data
- Package weight
- 43.4 kg
- Package width
- 650 mm
- Package height
- 693 mm
- Package depth
- 650 mm
- Package volume
- 292792 cm³
Logistics data
- Country of origin
- Turkey
- Harmonized System (HS) code
- 85381000
- UK Trade Tariff code
- 94032080
