Digitus Cable Management Panel with Brush Strip for 483 mm (19") Cabinets, 1U
- Easy installation - Brush strip and cable tray for perfect cable management
The Cable Management Panel is getting fixed on the 483 mm (19”) profile rails. The opening is outfitted with a brush strip which prevents the damage of inserted cables. A rear cable tray with fixing points for up to 24 cables rounds off the design and makes an optimized cable management in your 483 mm (19”) network- or server cabinet possible.
Digitus Cable Management Panel with detachable cover for 483 mm (19“) cabinets, 1U
- Easy installation
The Cable Management Panel is getting fixed on the 483 mm (19“) profile rails. A detachable rear plate makes to access to cables easier. An optimized cable management in your 483 mm (19”) network- or server cabinet is guaranteed.
Hook & Loop Tape, 20 mm width, 10 m roll, color black
- Structure your cabling in an easy and efficient way - The tape fits close and regularly and doesn't put too much pressure on the cable - perfect for sensitive installations - Re-usable
With the DIGITUS® Hook and loop tape for structured cabling you will reduce the chaos with your cabling inside of your cabinets. The tape provides an optimized support for your cables with its 20 mm width and the perfect adhesive material. The overall length of 10 m per roll leaves a big scope for use. Whether full cable harness in the panel of your DIGITUS® Network- or Server Cabinet or paired versions of patch cables; with the DIGITUS® Hook and loop tape your ensure a perfect cohesion. The multiple usable tape fits close and regularly and doesn't put too much pressure on the cables, so it fits for sensitive installations.
The perfect light source for your enclosure. Can be installed horizontally or vertically. Thanks to its magnetic mounting, it’s versatile and can be used in a wide range of applications—not just in network or server cabinets.
- Energy- and cost-saving - Maximum brightness without a warm-up period - Long service life - Energy efficiency class: F - Two different modes: Automatic door mode ("Automatic Mode") or touch mode ("ON/OFF Mode") - No heat generation - Compact design and flexible use via magnetic strip (285 mm) - M2.5 screws included for an alternative mounting option
Thanks to its compact design and magnetic mounting, the LED light is highly versatile. It can be installed anywhere in your 482.6 mm (19") enclosure, where it provides optimal lighting via high-performance LEDs that deliver maximum brightness immediately, without a warm-up period. The two different modes (selectable via a switch) offer particularly user-friendly operation. Automatic mode ensures that the LED cabinet lighting turns on automatically via the sensor as soon as you open the door of your 482.6 mm (19") enclosure, and turns off again as soon as you close it. Alternatively, the ON/OFF mode can be used for manual activation and deactivation. Move your finger or hand in front of the sensor to turn the light on and off. The power adapter is included, so the DIGITUS® LED light is ready to use right out of the box.
Digitus Mounting Kit for 482.6 mm (19") and 254 mm (10") Components, M6
User-friendly and quick installation of components in network or server cabinets.
- 50 screws, cage nuts, and washers - Standard size M6 - Compatible with all standard 19-inch or 10-inch perforated panels - PZ screw head - Silver screw, black washer - Ready to use right away: Shipped loose in a cardboard box
The DIGITUS® mounting kit consists of 50 M6 screws, cage nuts, and washers. Your equipment can be easily and securely mounted in a network or server cabinet. Thanks to the convenient snap-in method, the cage nuts can be quickly attached to the 19" rail. The PZ (Pozidriv) screw head ensures user-friendly operation.
Digitus aluminum outlet strip with switch, 7 safety outlets, 2 m supply with surge protection
Safe and professional power supply in the 19" range
- Perfect power distribution for your network and IT rack - Integrated overvoltage protection protects connected loads from overvoltage. - Sockets are rotated by 45° for optimum space management and easy access - Compact design, 19" 1U housing
The DIGITUS® power strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets the requirements of many applications in IT, network technology, laboratories and the home. The socket strip can be mounted in the 19" area of the cabinet in a space-saving 1U. Overvoltage protection protects consumers from overvoltage. The integrated switch is fitted with a cover to prevent the socket strip from being switched off unintentionally.
Digitus Key for Unique and SOHO Pro series wall-mounted enclosures
- Spare key
Key for Unique wall-mounted enclosures (e.g. DN-19 12-U) and SOHO Pro (e.g. DN-49200). Also suitable for the SOHO Slim enclosure (DN-19 04U-PB) and free-standing Unique server enclosures (e.g. DN-19 SRV-26U-1) & free-standing Dynamic enclosures (e.g. DN-19 42U-8/8-D).
Digitus Cable management bracket for 482.6 mm (19") network and server enclosures
Complete set of cable management brackets and mounting screws for flexible cable management.
- The cable management brackets keep your 482.6 mm (19") network or server enclosure tidy. - Make structured cabling flexible. - Compact design that requires only about one height unit (1U). - Angled opening for easy cable entry. - Robust sheet steel with powder coating in gray (RAL 7035) to match the network or server enclosure. - Set of 10 cable management brackets incl. mounting material
The cable management brackets keep your 482.6 mm (19") network or server enclosure tidy. The robust sheet steel construction offers a flexible and optimum solution for structured cabling. The scope of delivery includes 10 cable routing rings and the required fastening material.
Punched out cable entries with plastic cover on all sides (145x70 mm)
Description

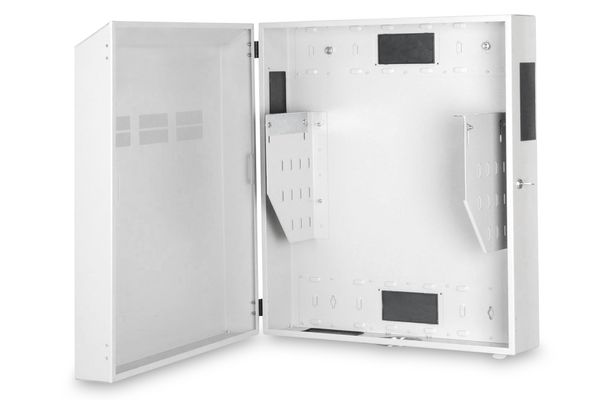

Slim design with mounting profiles for vertical installations inside
- Slim design which is perfect for small home automations - 483 mm (19“) mounting areas inside: 4U in depth - Lockable front door with air ventilation slots
The 483 mm (19“) Wall Mounting Cabinet of the Sim Series allows a vertical mounting of 4U in depth. Especially space saving for networks, DVR, sound equipment, paging- and patching applications or other 483 mm (19”) active components.
Specifications
About this item
About this item
Item No.
364515
EAN
4016032383253
Manufacturer No.
DN-19 WM-V4U-SL
Specs
No matching specifications found.
Features
Front door key lock
Yes
Front door construction
Steel
International Protection (IP) code
IP20
Key lock
Yes
Type
Wall mounted rack
Material
Steel
Product colour
Light grey
Maximum weight capacity
100 kg
Rack capacity
4U
Side panels included
Yes
Weight & dimensions
Size (imperial)
48.3 cm (19")
Width
640 mm
Depth
220 mm
Height
820 mm
Packaging data
Package weight
18 kg
Package width
660 mm
Package height
820 mm
Package depth
230 mm
Package volume
124476 cm³
Logistics data
Country of origin
Turkey
Harmonized System (HS) code
85381000
UK Trade Tariff code
94032080
