Digitus Roof-mounted fan unit for 483 mm (19") wall-mounted housing
The DIGITUS® 483 mm (19") accessories have been developed for the high demands of IT infrastructure and are manufactured to German quality standards.
- Simple installation in the roof module of the 19" wall-mounted housing - The waste heat from the built-in components is actively dissipated upwards via the fan unit - Two built-in fans - Includes adjustable thermostat and ON/OFF switch
The roof-mounted fan units are suitable for all wall-mounted enclosures in the Unique & Dynamic series and for outdoor wall-mounted enclosures. Installation in the roof module of the enclosure can be carried out quickly and easily in just a few steps. Equipped with an ON/OFF switch and a shelf-mounted thermostat, each fan unit offers the best operational readiness according to individual requirements. The model is available in the standard colors grey (RAL 7035) and black (RAL 9005) and is equipped with two fans.
Digitus Extendible Shelf for 483 mm (19") Cabinets
- Extractable, with handle bar - For fixing at the four 483 mm (19") mounting profile rails
The extendible Shelves are easy to install at the four 483 mm (19") profile rails of your 483 mm (19") cabinets. Due to the sturdy, perforated sheet steel with a high load capacity, they are the optimal surface for your network components. An attached handle can be installed to faciliate the extension of the shelf. Available in standard color grey (RAL 7035) and black (RAL 9005).
Digitus Fan unit for variable 483 mm (19") installation
DIGITUS® 483 mm (19") accessories are designed to meet the high demands of IT infrastructure and are manufactured to German quality standards.
- Variable installation in the 483 mm (19") level - The waste heat from the built-in components is actively dissipated via the fan unit - Two built-in fans - Includes adjustable thermostat and ON/OFF switch
Also known colloquially as slide-in fans, the fan units can be mounted variably in the 19" grid of any network or server rack instead of under the roof. The scope of delivery includes mounting brackets for easy attachment in the 19" profile. Equipped with an ON/OFF switch and a shelf-mounted thermostat, each fan unit offers the best operational readiness according to individual requirements. The model is available in the standard colors grey (RAL 7035) and black (RAL 9005), optionally equipped with two or four fans.
Digitus Shelf with Variable Rails for Fixed Mounting in 483 mm (19") Cabinets
- Variable fastening rail: 350 mm to 550 mm in depth - Variable fastening rails ensure optimal hold in the 483 mm (19”) profile
The shelves for fixed mounting can be installed easy on the four 483 mm (19“) profile rails of your 483 mm (19“) network- or server cabinet. Due to their stable, perforated steel sheet with a load capacity of 50 kg, they are the optimal surface for components which are not 483 mm (19”) suitable. The fixing rails are can be adjusted if needed.
Digitus Extendible Shelf for fixed mounting on front 483 mm (19") profile rails
Due to its compact construction it is perfectly suitable also for 483 mm (19”) wall mounting cabinets with a depth from 450 mm.
- extendible, with handle - Fixed installation only on the front 483 mm (19") profile rails - due to this it is perfectly suitable for double sectioned wall mounting cabinets
The shelf for fixed mounting is easy to install on the front 483 mm (19“) profile rails of your 483 mm (19“) network- or server cabinet. Due to its compact construction it is perfectly suitable also for 483 mm (19”) wall mounting cabinets with a depth from 450 mm. The shelf is extendible via handle which makes the access easier. Due to its stable, perforated steel sheet with a load capacity of 30 kg, it is the optimal surface for components which are not 483 mm (19”) suitable.
Roof is prepared to accommodate a fan element (punched-out mounts)
483 mm (19") profile rails mounted at the front and rear inside the enclosure, galvanized
Installation depth for components (standard maximum): 369 - 470 mm

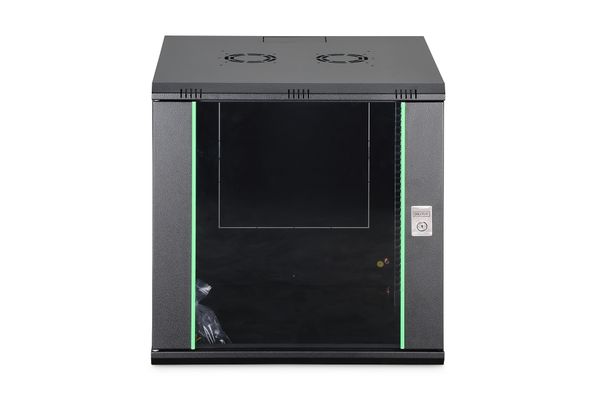

Lockable safety glass door with steel frame
Ventilation slots for active and passive ventilation
Protection class IP20

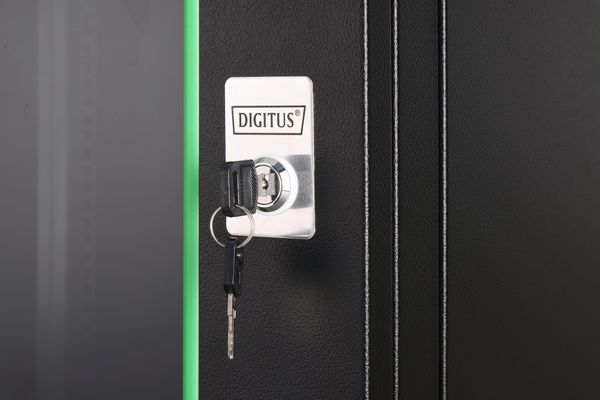

1-point locking on the front door
1.0 - 1.2 mm robust sheet steel with high load-bearing capacity, powder-coated

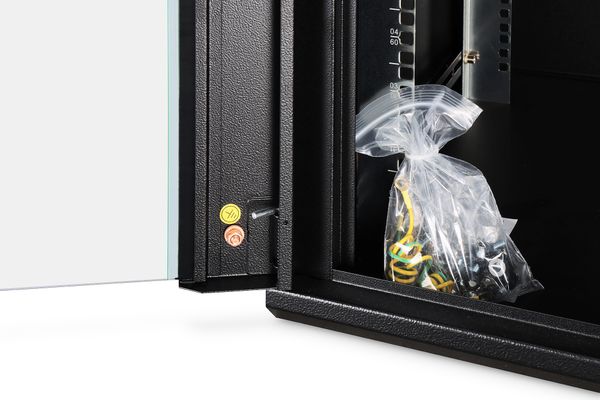

4 earthing points (base, side panel and front door) with protective cap

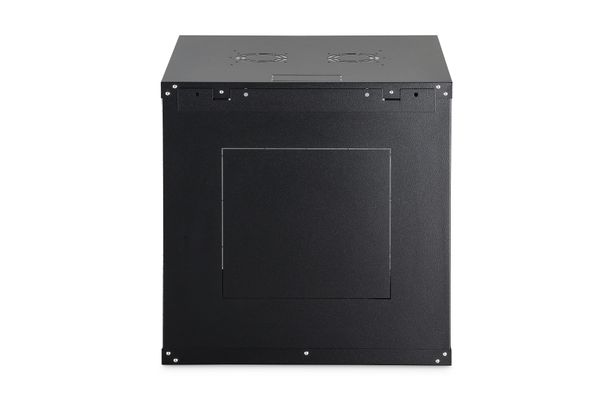

Cable entry possible at the rear, roof and base (pre-punched cut-outs)
230° door opening angle

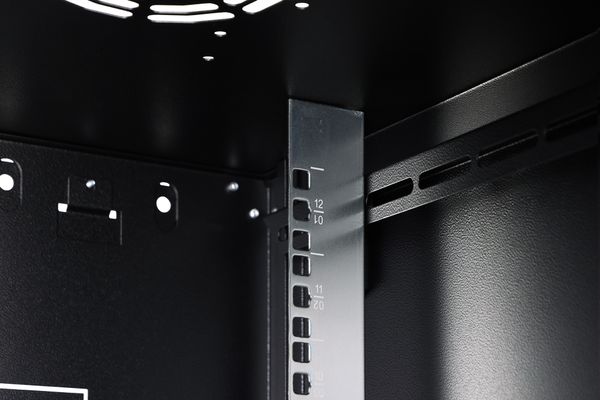

483 mm (19") profile rails are adjustable in depth and marked with the height unit
Description
483 mm (19") profile rails mounted at the front and rear inside the enclosure, galvanized
- 450 mm depth offers space-saving installation - Optimum ventilation and air extraction - Lockable safety glass door with steel frame

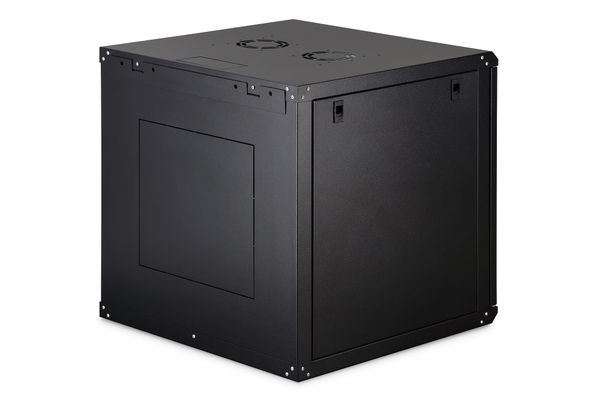

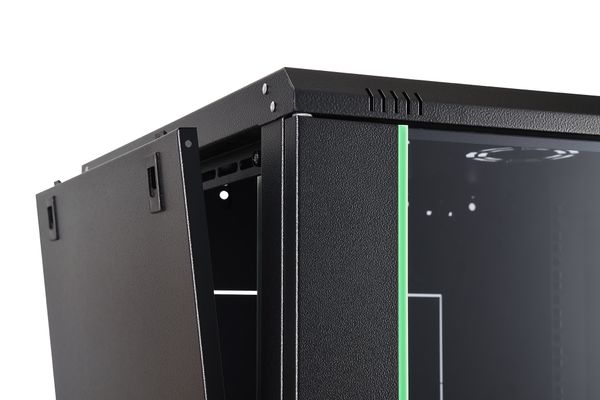

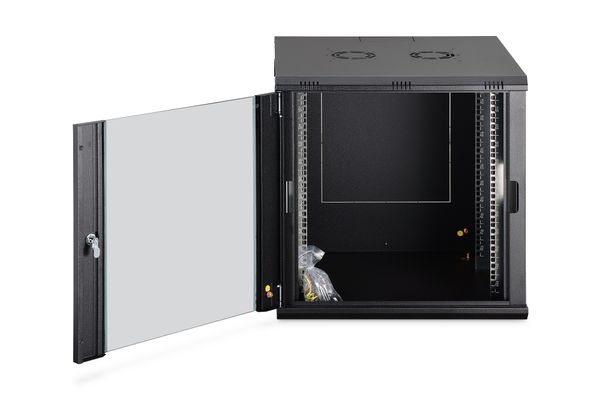

The Dynamic series wall-mounted network cabinets have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing.
Specifications
About this item
About this item
Item No.
364549
EAN
4016032257820
Manufacturer No.
DN-19 12U-6/6-EC-SW
Specs
No matching specifications found.
Features
Front door key lock
Yes
Side panel construction
Steel
Front door construction
Glass
Removable side panels
Yes
Key lock
Yes
Type
Wall mounted rack
Material
Steel
Product colour
Black
Maximum weight capacity
60 kg
Rack capacity
12U
Side panels included
Yes
International Protection (IP) code
IP20
Weight & dimensions
Height
638 mm
Width
600 mm
Depth
600 mm
Weight
29 kg
Packaging data
Package weight
26 kg
Package width
655 mm
Package height
655 mm
Package depth
655 mm
Package volume
253890 cm³
Logistics data
Country of origin
China
Harmonized System (HS) code
85381000
UK Trade Tariff code
94032080
